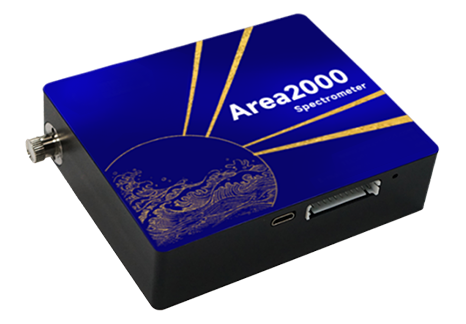

· Area2000 is a miniature spectrometer with compact structure design and configurable spectral range, high resolution, the best up to 0.07nm, low stray light, ~2 ‰, small temperature drift, wavelength temperature drift ~ 0.1pixel/ ℃. It is suitable for laser measurement, plasma emission spectrum measurement, color measurement, absorbance measurement and Raman measurement and other industrial field measurements. It is an industrial grade spectrometer with high performance and price.

Common Specifications

Fiber interface	Key-SMA905
Number of detector pixels	2048*64
Stray light	~2‰
Wavelengths of temperature drift	~0.1pixel/℃
Optical fiber insertion and unplugging consistency	≦7%
AD sampling	16 bit
Data interface	USB2.0、RS232
Extended function interface	24 PIN
Acquisition mode	Single, continuous, software trigger, synchronous external trigger, asynchronous reset trigger
Detector integration time	50 μs-65 s
CCD readout Noise	≤20RMS
CCD Dynamic Range	4000：1
Response linearity of	≥98%
Weight	330g
Working temperature	0℃~40℃
Working humidity	20%-85%

Enter your email address to get free access, receive a product brochure, or enjoy special discounts.

Selection Guide

Interface definition

Dimensional drawing

Typical spectra

Care and maintenance

Specifications	Starting wavelength (nm)	Cut off wavelength (1300nm)	Spectral Resolution (nm) / 10µm	Spectral Resolution (nm) / 25µm	Spectral Resolution (nm) / 50µm
Area2000-750-1300	750	1300	-	0.6	-
Area2000-200-1100	200	1100	-	1.3	-

Area2000 Miniature spectrometer
