· Cost-effective transmissive spatial light modulator

Common Specifications

Modulation	Amplitude-only
LCD type	Transmissive
LCD mode	TN
Grayscale level	8 bits, 256 steps
Driving method	Analog signal
Resolution	1024×768
Image Size	26μm
Effective area	26.6mm×19.9mm
Contrast Ratio	400:1@532nm ，400:1@635nm ，100:1@808nm ， 80:1@1064nm
Aperture opening ratio	67%
Optical Utilization	35%@532nm 38%@635nm 35%@808nm 30%@1064nm
Linearity	99%
Wavelength calibration	support
Power input	16V 1A / 12V 2A
Response time	≤16.7ms
Spectral range	420nm-1200nm
Refresh frequency	60 Hz
Damage Threshold	2W/cm²
Data Interface	VGA/HDMI

Enter your email address to get free access, receive a product brochure, or enjoy special discounts.

Product Information

Basic operation
-Start the computer.

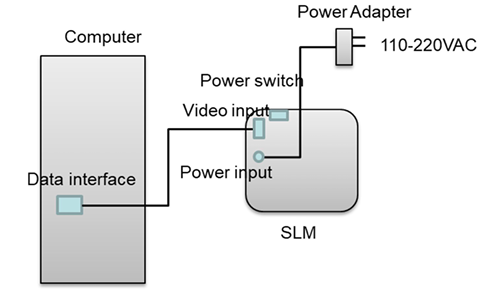

-Connect the components as shown in the figure below (connect the power adapter finally ).

Software

Open program interface, the software opens the function interface of image processing part in the form of SDK, including various picture selection methods, playback control of multicast pictures and window management functions, developers can carry out basic image control programming operations according to the function functions provided by the interface; SDK supports various development languages, including Labview, C/C++, C#, VB. python, Matlab, and provides complete Demon program.
