· The 808nm fluorescent laser is widely used in bio-analysis, medical instruments, material detection, fluorescence excitation, architecture and other fields.

Common Specifications

Enter your email address to get free access, receive a product brochure, or enjoy special discounts.

Product parameter

Interface definition

Application

Typical spectra

Name	Software-Controlled fluorescent Laser	Software-Controlled fluorescent Laser	Manually Controlled fluorescent Laser	Manually Controlled fluorescent Laser
Model	RHL808-300US	RHL808-300UF	RHL808-300HS	RHL808-300HF
Interface	SMA	FC	SMA	FC
Supply voltage	5V/4A	5V/4A	12V/2A	12V/2A
Central wavelength	8083nm	8083nm	8083nm	8083nm
Line width	＜2 nm	＜2 nm	＜2 nm	＜2 nm
Laser power	10~3000mW adjustable	10~3000mW adjustable	10~3000mW adjustable	10~3000mW adjustable
Power stability	＜3% P-P （2hrs）	＜3% P-P （2hrs）	＜3% P-P （2hrs）	＜3% P-P （2hrs）
Service life	5,000 hrs	5,000 hrs	5,000 hrs	5,000 hrs
Preheating time	15 min	15 min	15 min	15 min
Working temperature	0～45℃	0～45℃	0～45℃	0～45℃
Working humidity	5～80%	5～80%	5～80%	5～80%

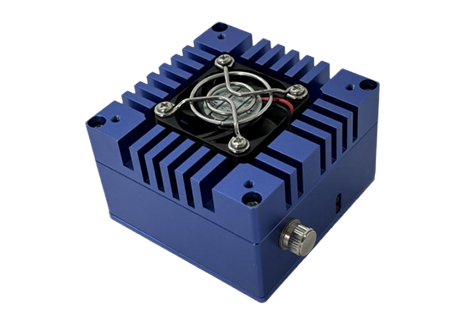

RHL808 fluorescent laser
